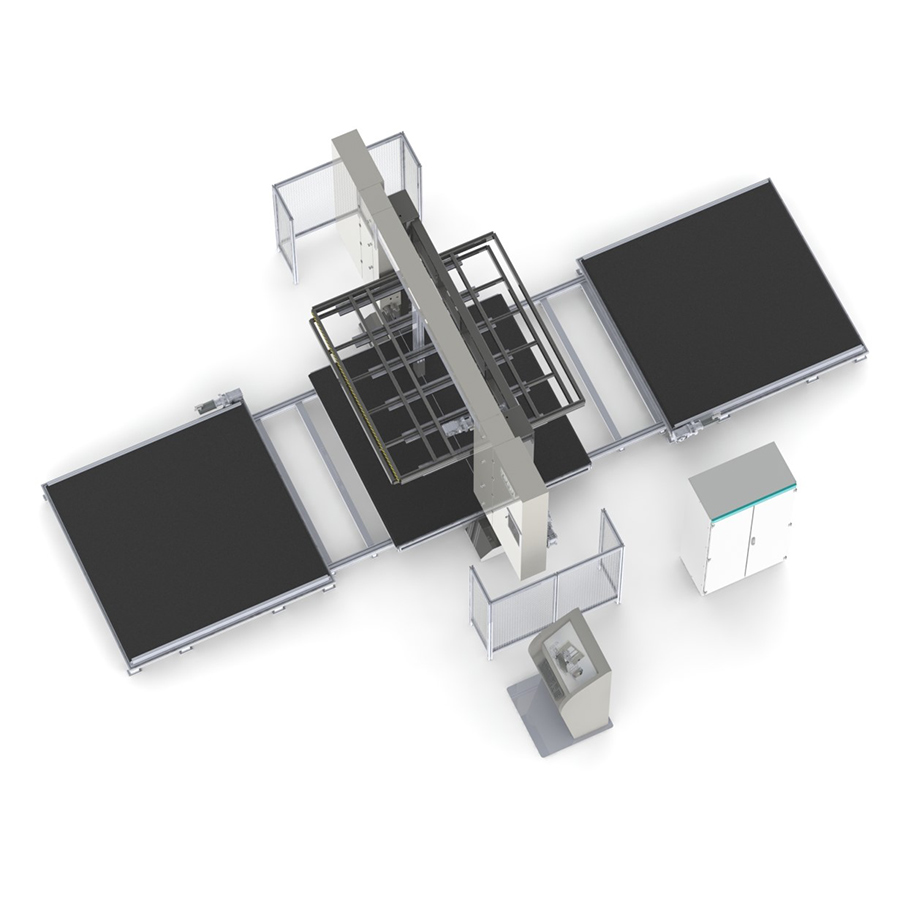

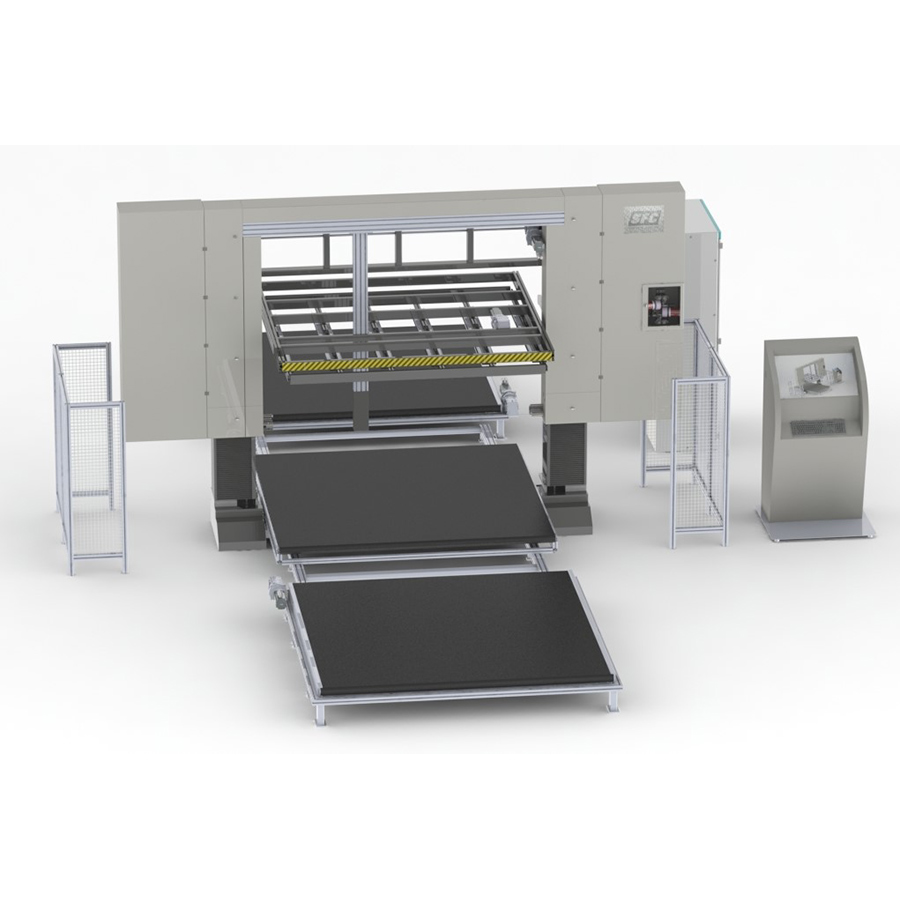

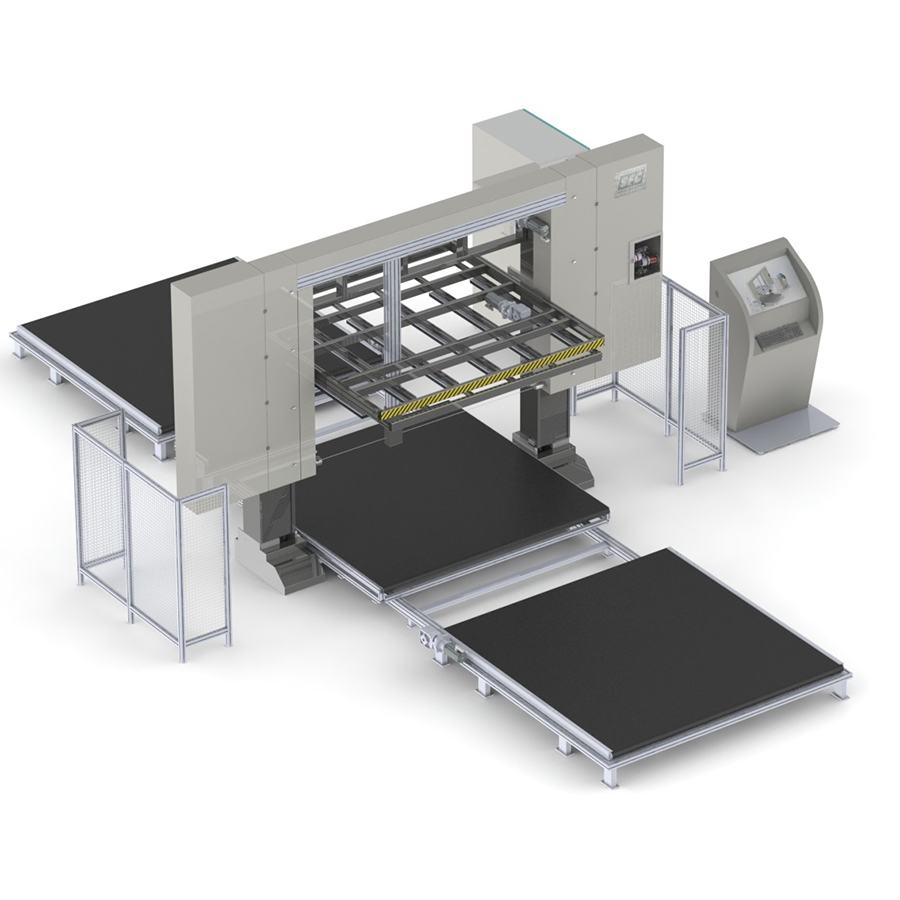

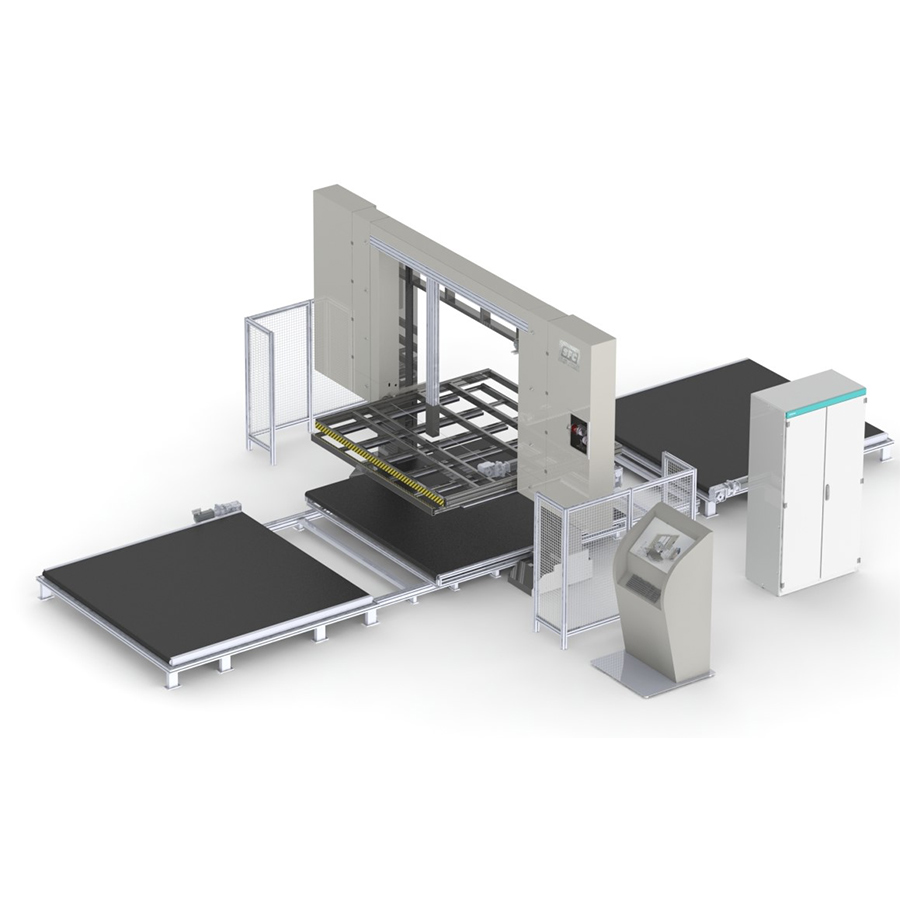

SFC-CNC FOAM CUTTING MACHINE

Technical Specifications

CUTTING DIMENSIONS

STANDARD

OPTIONAL

Width

2300mm

2600mm

Length

2300mm

2600mm

Height

1300mm

1500mm

Quailty Standard

The machine is manufactured according to European standards and has CE certification.

CUTTING PROPERTIES

Cutting speed: 0 - 40 m/min.

Flexible PU foam in different densities (Polyester and Polyether)

STANDART PROPERTIES

Automatic Turntable System

It is a table system with a conveyor, whose table can automatically rotate 90° for products that will be cut with two axis, and which is also suitable for product loading and unloading system.

Movable Blade Guide System

It is a guiding system with automatic servo system for precise cutting of wide and two separate products at the same time.

Sharpening Unit

Automatic time defined grinding system with stable and powerful motor driven grinding unit.

Siemens Servo Motor Controlled Axes

Frequency Controlled Asynchronous Motors

Openable Safety Gate and Security Barriers

English and German Interface Option

OPTIONAL PROPERTIES

Loading and Unloading Conveyor System

It is a transfer system that is installed at the entrance and exit of the table so that the cutting process can continue uninterrupted, providing continuous product flow and convenience to the cutting line.

Automatic Block Size Detection System
