Cutting Method
With a high suction vacuum system, the bloks are fixes and work together with the automatic angle adjustment system for precise cutting at high speeds.

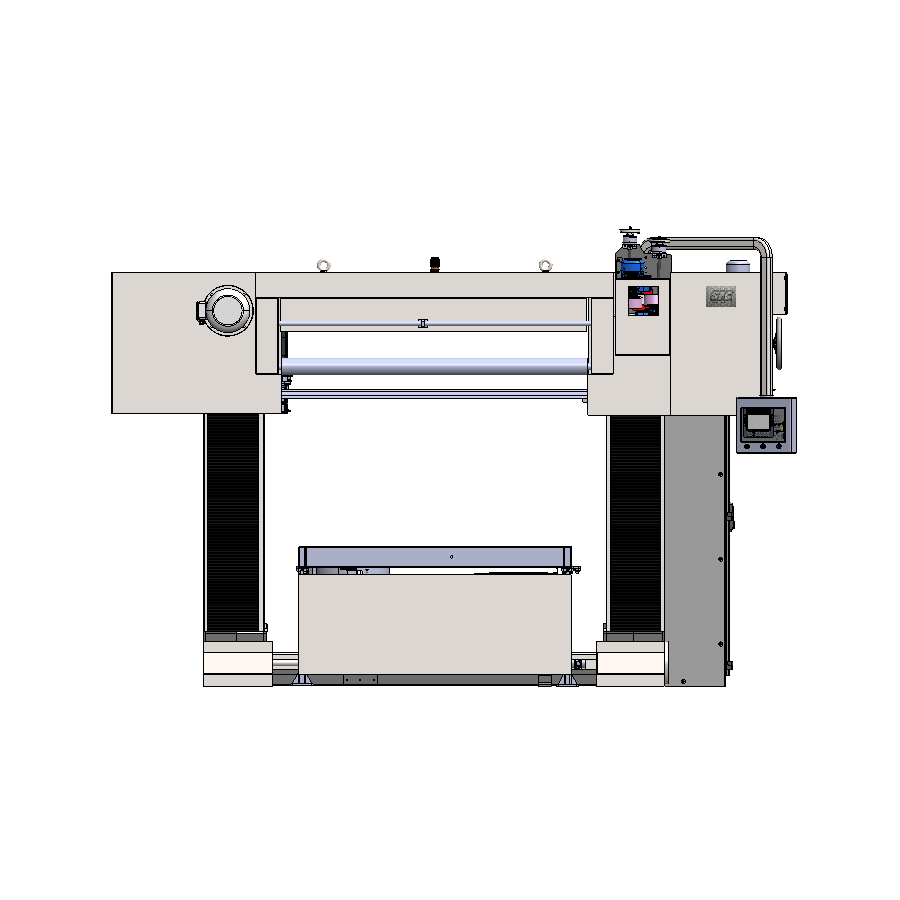

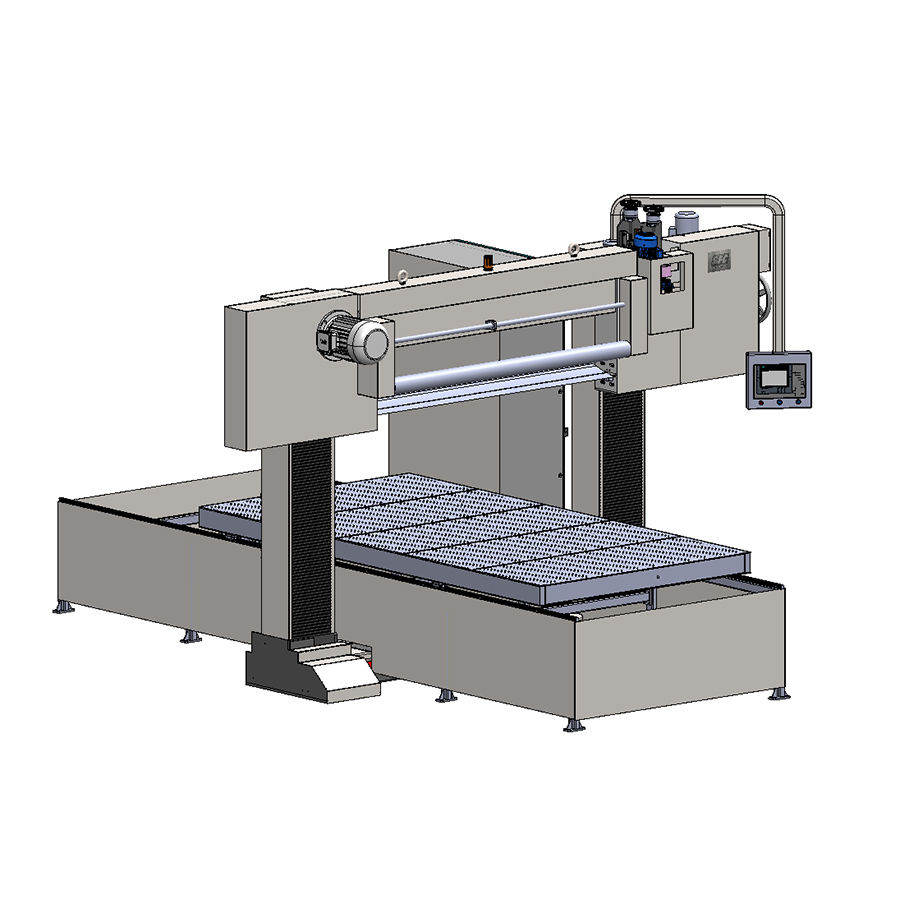

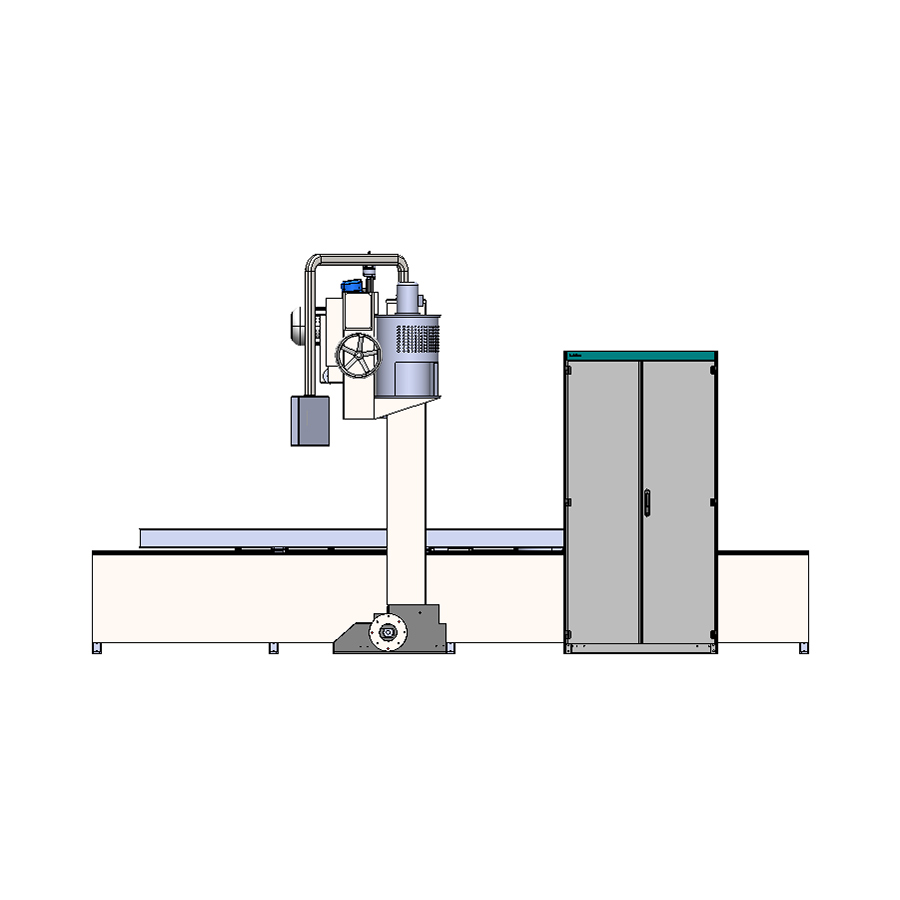

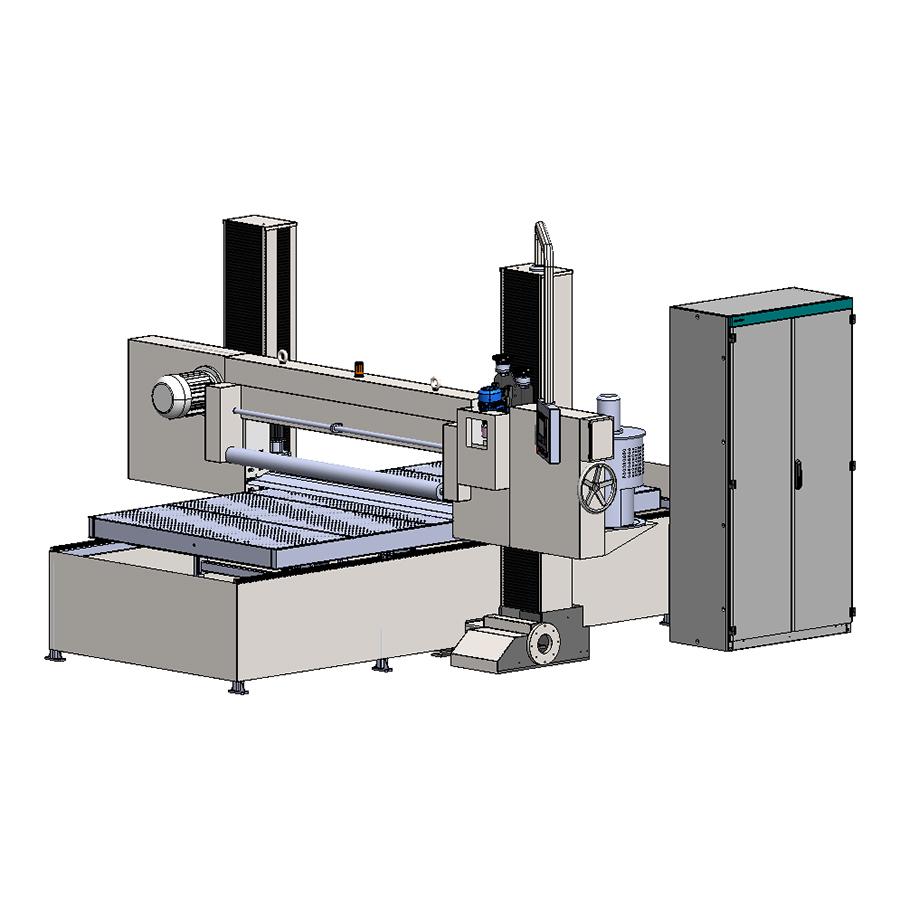

SFC-HRZ 160 HD HIGH DENSITY PRODUCT CUTTING MACHINE
It is a machine that makes precise and high quality cutting of high density and rigid rigid products with its linear moving table and angle adjustable cutting unit.
Technical Specifications
|
CUTTING DIMENSIONS |
STANDARD |
OPTIONAL |
|
Table Width |
1600mm |
2200mm |
|
Table Lenght |
2200mm |
3000 mm-4000 mm- 6000 mm |
|
Height |
1100mm |
1300mm |
Easy and Comfortable Operation Panel
Convenient control panel and interface make it easy for the operator.
Quailty Standard
The machine is manufactured according to European standards and has CE certification.
CUTTING PROPERTIES
The cutting speed can be adjusted between 2 – 70 m/min. Harder and denser foams will need to be cut at the 50% of the max speed.
Minimum cutting thickness is 2 mm
Clearance above the band knife is 100 mm
The Cutting tolerances +/- 0,2 mm for 2 to 10 mm and +/- 0,3 mm for 10 to 30 mm and +/- 0,5 mm for 30 mm and up on densities below 60 kg/m3. Densities above 60 kg/m3 cutting tolerance is less than 1%.
STANDART PROPERTIES
Sharpening Unıt
Automatic time defined grinding system with stable and powerful motor driven Sharpening Unıt.
Blade Guidance System
Blade guidance system, selected from high/strenght steel material, with Teflon coating, for precision in foam section of the upper densities.
Spark Extraction Unit
With the side tables, the foam block is fixed, and the correct cutting position is adjusted.
Sharpening System
Cooled filter system that absorbs and removes dust and sparks generated during sharpening.
Heavy-Duty
Advanced knife guide for precision cutting and longer blade life.
Cut timesPrescription distance determination is available to reduce cutting times to a minimum time.
Servo Motor Driven Print Cylinder Unit
Voltage / frequency 400 V, 15,5 kW, 50 Hz
Siemens Servo Motor Controlled Axes
Frequency Controlled Asynchronous Motors
Openable Safety Gate and Security Barriers
English and German Interface Option
OPTIONAL PROPERTIES
Vacuum Unit
Reinforced vacum unit with frequency speed unit control motors.
Panel Type Air Conditioning System
It is used for cooling the electrical panel for locations with high ambient conditions.
Product Transfer System
It is a conveyor system that allows the transfer of each cut product.
Working Panel with Acrobat Arms
Anti-Static System
Angle Adjustable Cutting Unit
Angle adjustment between 0 and +7 degrees can be made manually or automatically with the cutting unit motor drive system. Angle recipe can be created for products with different densities. Optional angle adjustment can be made between 0 and +12 degrees.
