SFC-LPR FOAM CUTTING MACHINE

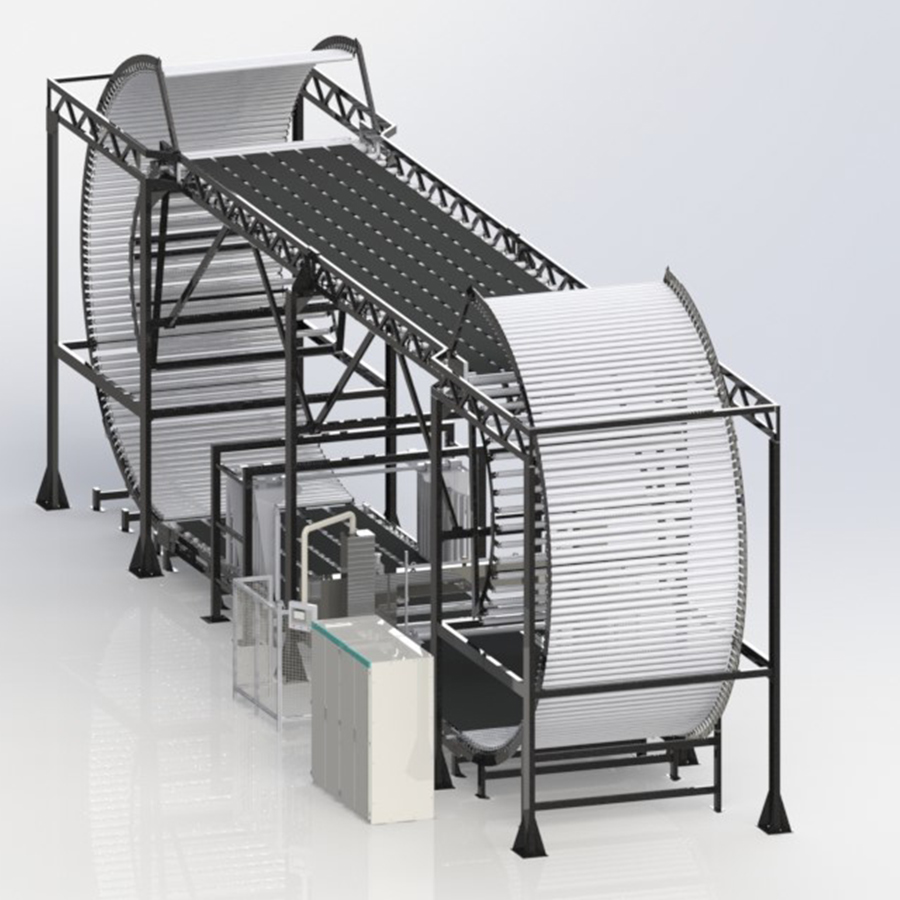

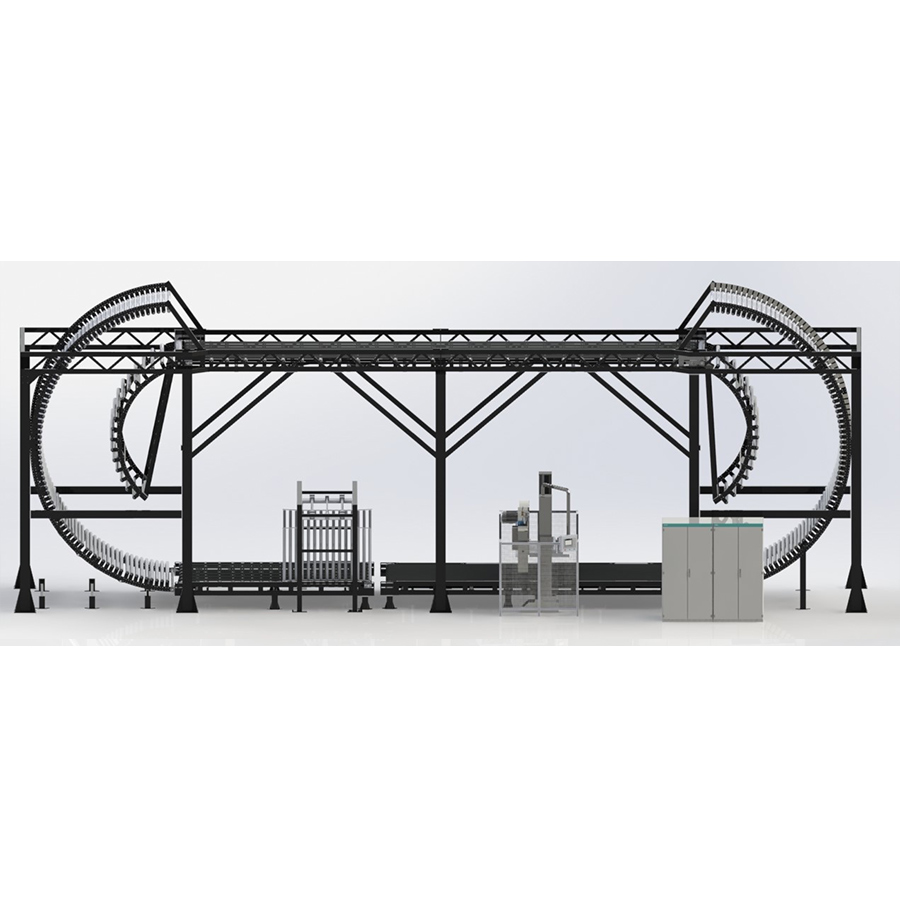

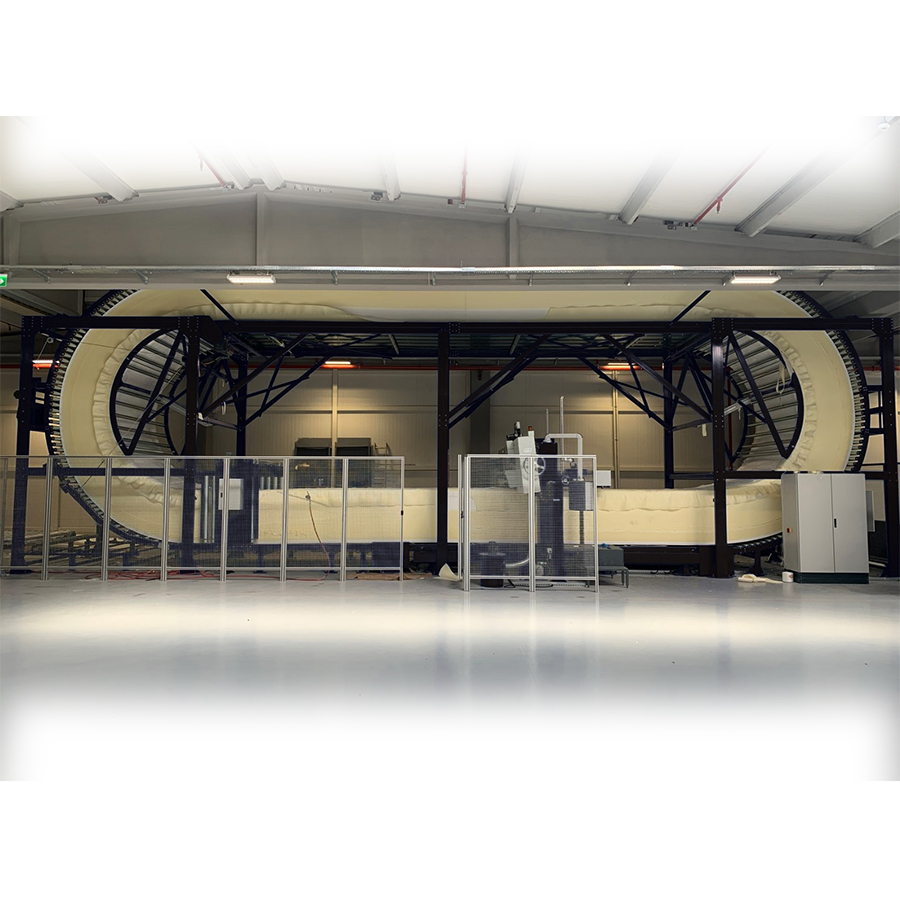

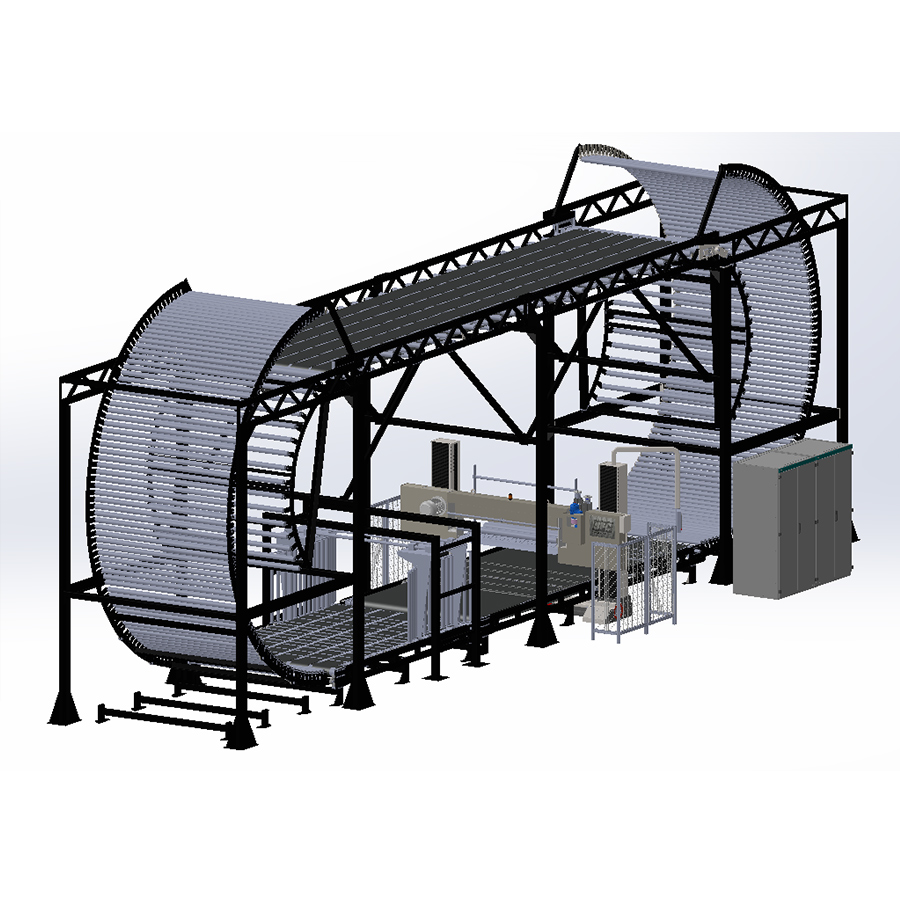

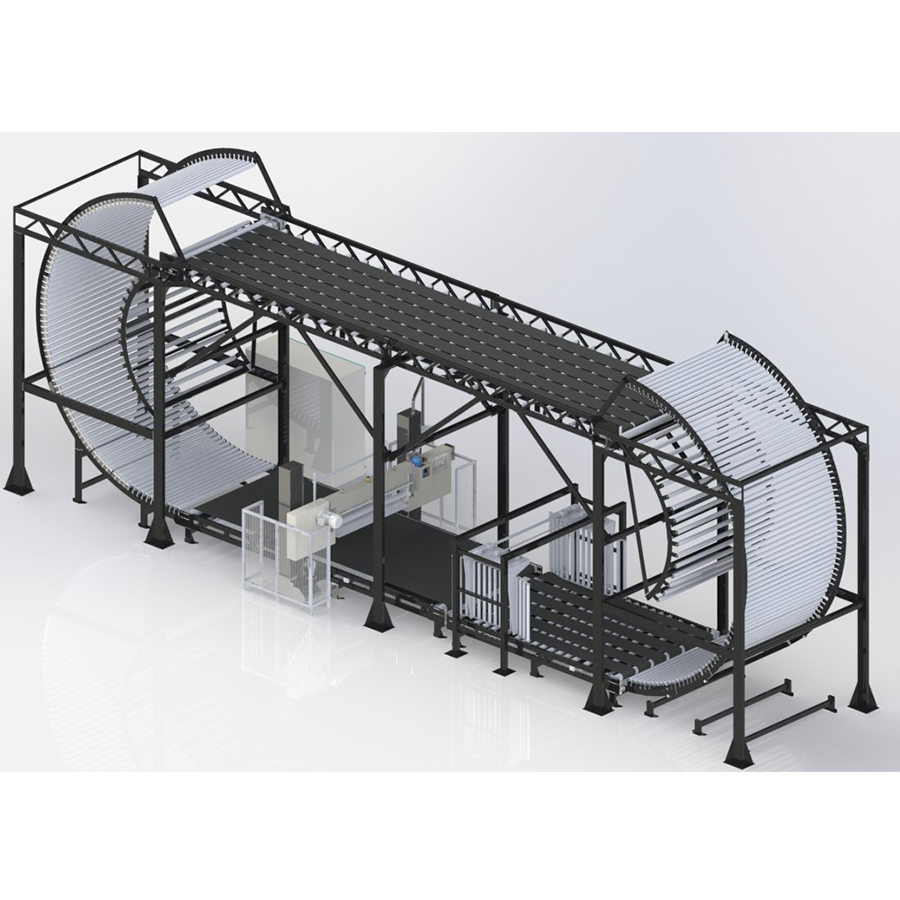

It is a sponge cutting machine that allows you to continuously cut glued long sponge blocks by rotating them in an oval shape.

Technical Specifications

CUTTING DIMENSIONS

STANDARD

OPTIONAL

Width

2300mm

2500mm

Length

40m

30m, 60m, 120m

Height

1300mm

1500mm

Cutting Method

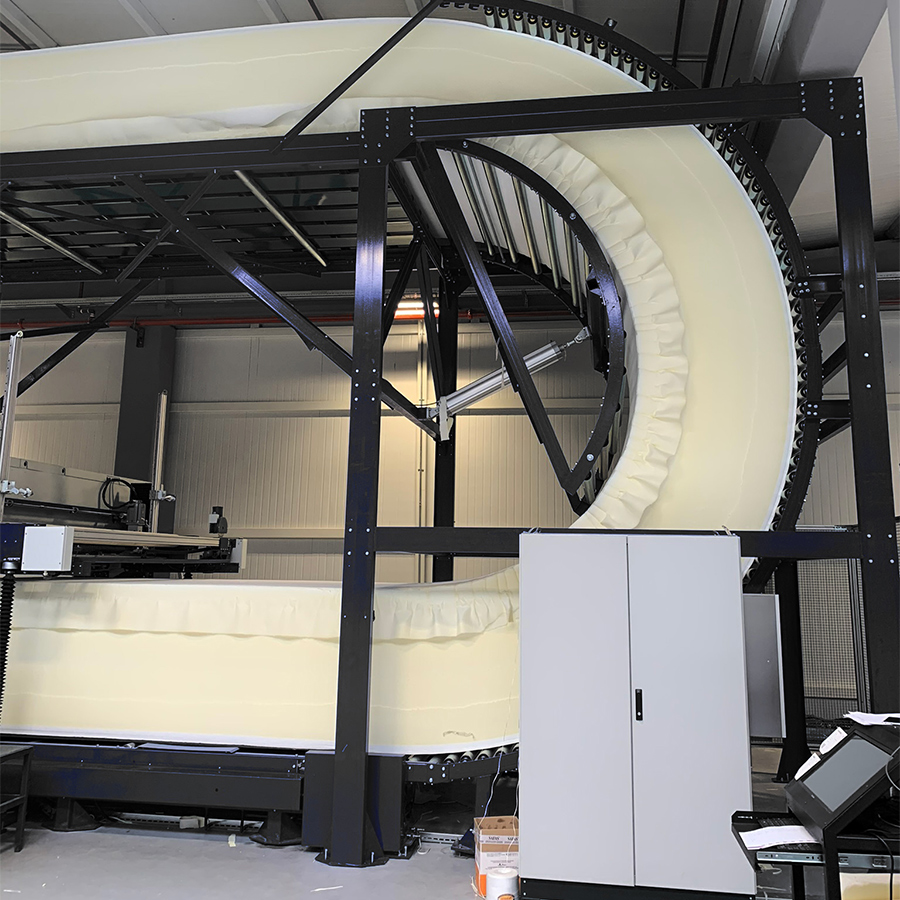

The peeling process is performed by rotating the sponge block over the conveyor belts running synchronously with each other.

Easy and Comfortable Operation

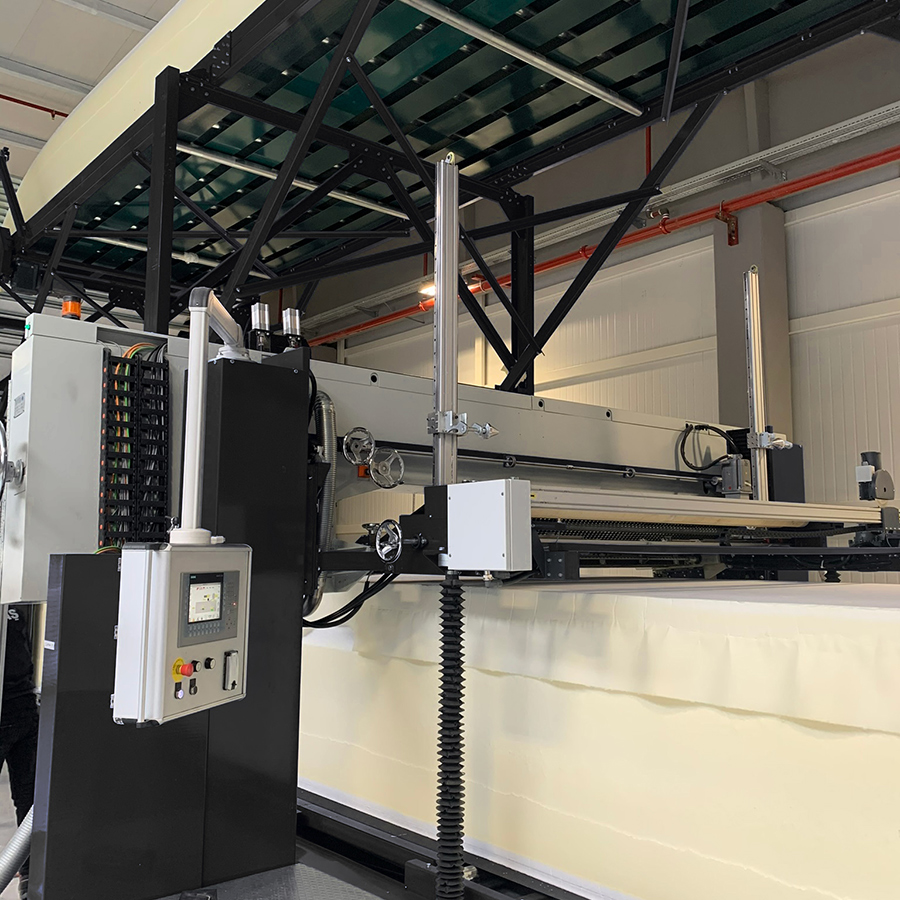

Convenient control panel and interface make it easy for the operator.

Quailty Standard

The machine is manufactured according to European standards and has CE certification.

CUTTING PROPERTIES

Cutting speed: 120 m/min.

Cutting precision: ±0,1 mm

Flexible PU foam (Polyester and Polyether), Rebonded, Viscoelastic, Latex etc. materials can be cut.

STANDART PROPERTIES

Angle Adjustable Cutting Unit

Angle adjustment between 0 and +7 degrees can be made manually with the cutting unit motor drive system.

Sharpening Unit

Automatic time defined grinding system with stable and powerful motor driven grinding unit.

Printing Roller System

Servo controlled cylinder system that can work synchronously with block speed for high cutting accuracy.

Spark Extraction Unit

Cooled filter system that absorbs and removes dust and sparks generated during sharpening.

Position-Controlled Block Centering Unit

Working Panel with Acrobat Arms

Siemens Servo Motor Controlled Axes

Frequency Controlled Asynchronous Motors

Openable Safety Gate and Security Barriers

English and German Interface Option

OPTIONAL PROPERTIES

Adjustable Slitting System With Multi-Circular Blades

Block Loading System from Both Sides

Anti-Static System
