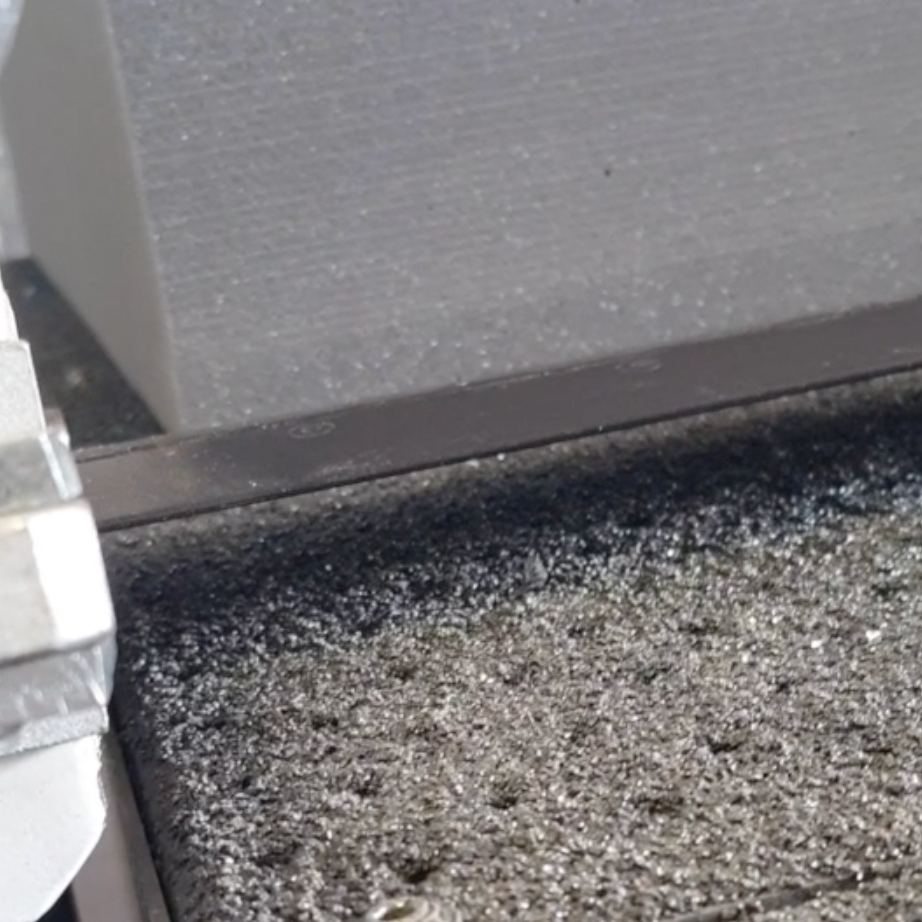

Cutting Method
With a high suction vacuum system, the blocks are fixes and work together with the automatic angle adjustment system for precise cutting at high speeds.

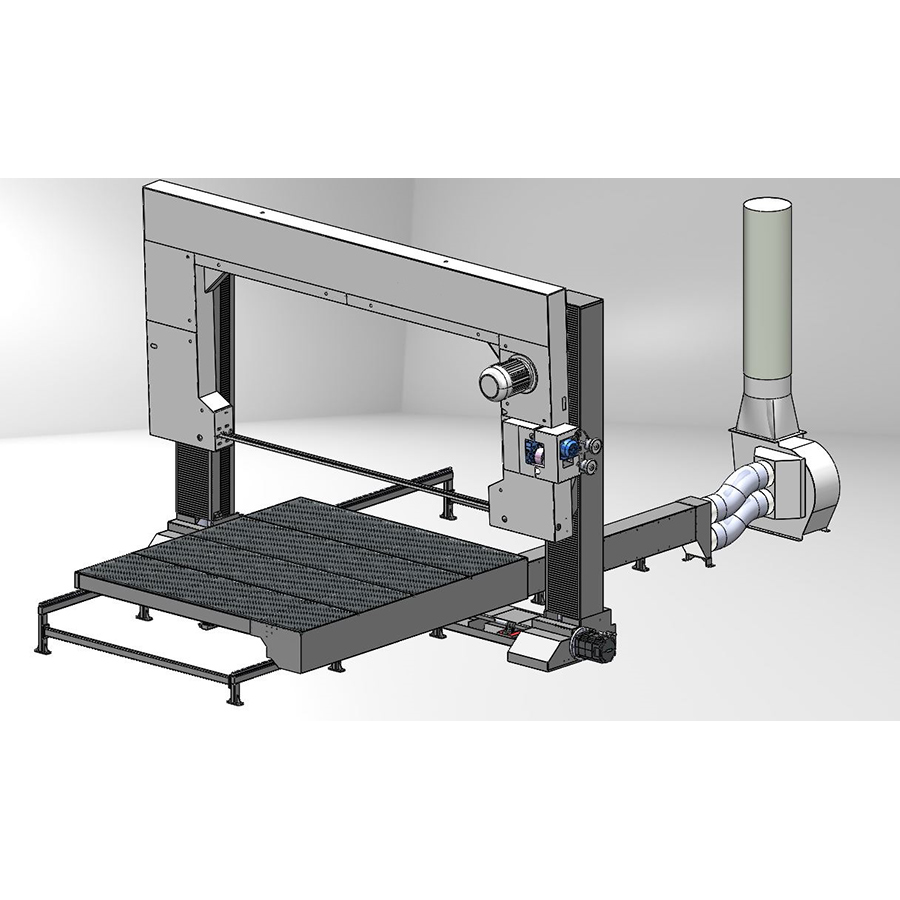

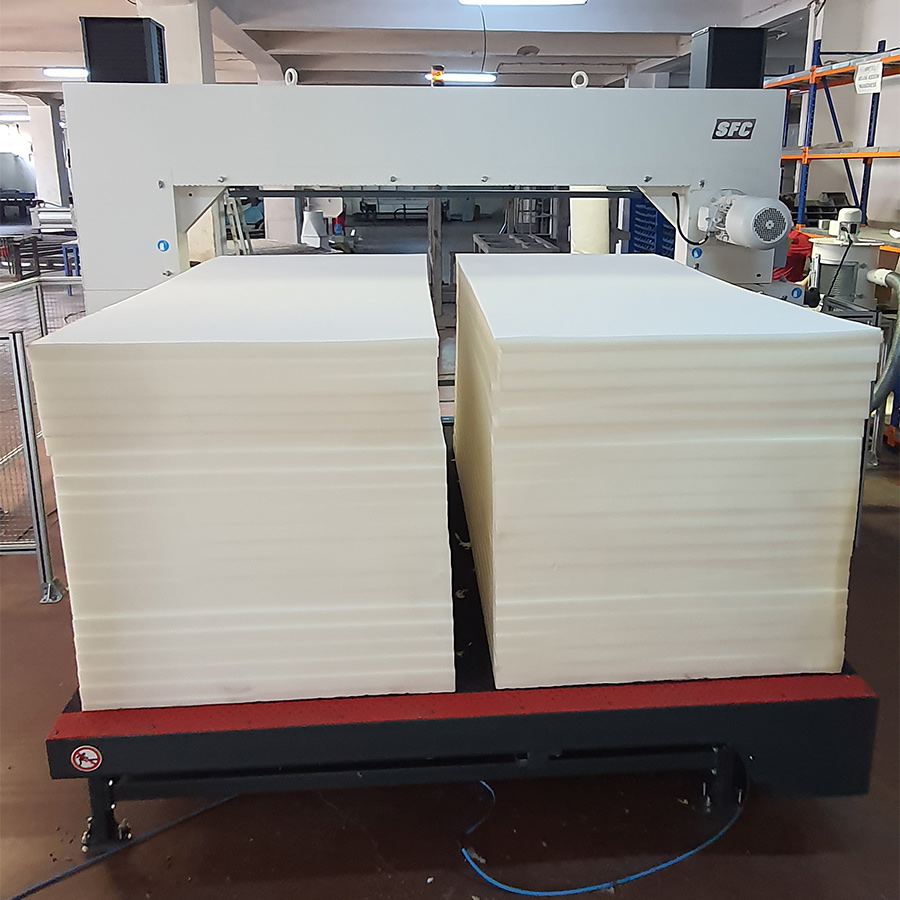

SFC – HRZ AUTOMATIC HORIZONTAL CUTTING MACHINE
The cutting plate and angle adjustment cutting unit make precise and high quality cutting of low and medium-strength products. It is ideal for places where limited area spaces as it occupies a small space due to its dimensions.
Technical Specifications
|
CUTTING DIMENSIONS |
STANDARD |
OPTIONAL |
|
Table Width |
2250mm |
2500mm |
|
Table Length |
2250mm |
2500mm |
|
Height |
1300mm |
1500mm |

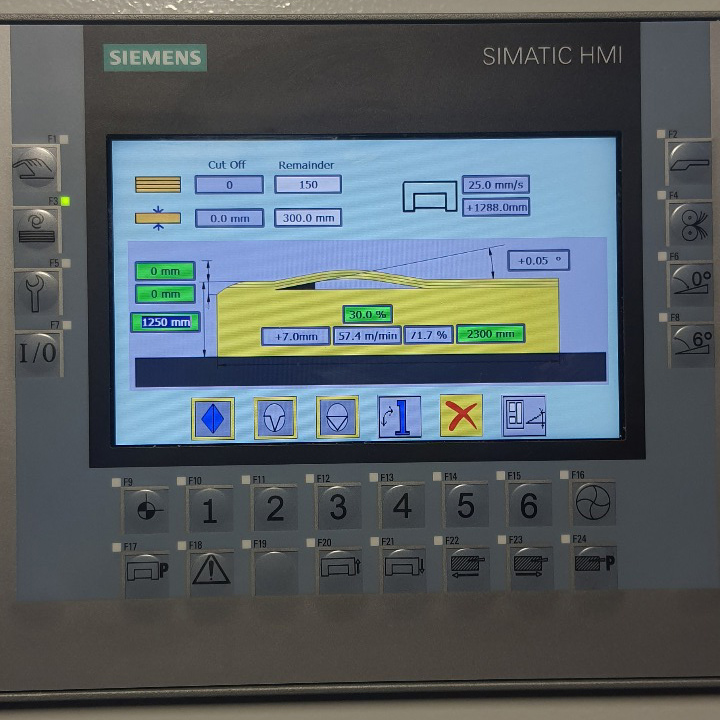

Easy and Comfortable Operation
Convenient control panel and interface make it easy for the operator.
Quailty Standard
The machine is manufactured according to European standards and has CE certification.
CUTTING PROPERTIES
The cutting speed can be adjusted between 0 – 80 m/min.
Cutting precision: ± 0,2 mm for thicknesses between 2-10 mm, ±0,3 mm for thicknesses of 10 mm and above
Minimum cutting thickness: 2 mm
Flexible PU foam (Polyester and Polyether), Rebonded, Viscoelastic, Latex etc. materials can be cut.
STANDART PROPERTIES
Vacuum Unit
Vacuum and dust filter system that keeps the material stable during the cutting process.
Sharpening Unıt
Automatic time defined grinding system with stable and powerful motor driven Sharpening Unıt.
Blade Guidance System
Blade guidance system, selected from high-strength steel material, with Teflon coating, for precision in the foam section of the upper densities.
Spark Extraction Unit
Cooled filter system that absorbs and removes dust and sparks generated during sharpening.
Pneumatic Blade Tensioning System
Siemens Command and Control Unit
Siemens Servo Motor Controlled Axes
Openable Safety Gate and Security Barriers
Frequency Controlled Asynchronous Motors
English and German Interface Option
OPTIONAL PROPERTIES
Silicone Spray System
It minimizes the guide friction by spraying silicon spray on the blade guide surface at certain periods.
Angle Adjustable Cutting Unit
Angle adjustment between -1 and +6 degrees can be made manually or automatically with the cutting unit motor drive system. Angle recipe can be created for products with different densities.
