SFC – HRZ CAROUSEL CUTTING MACHINE

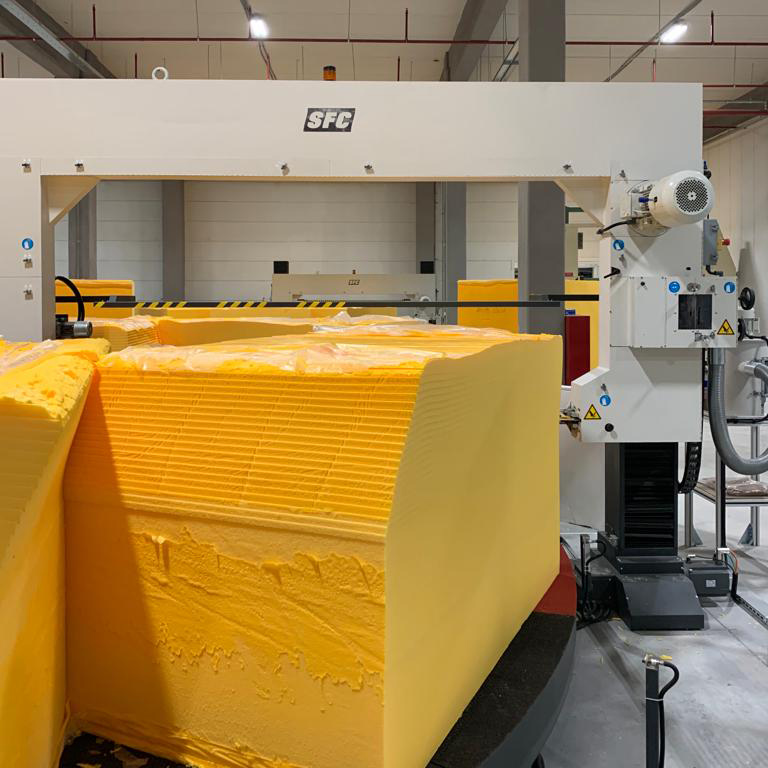

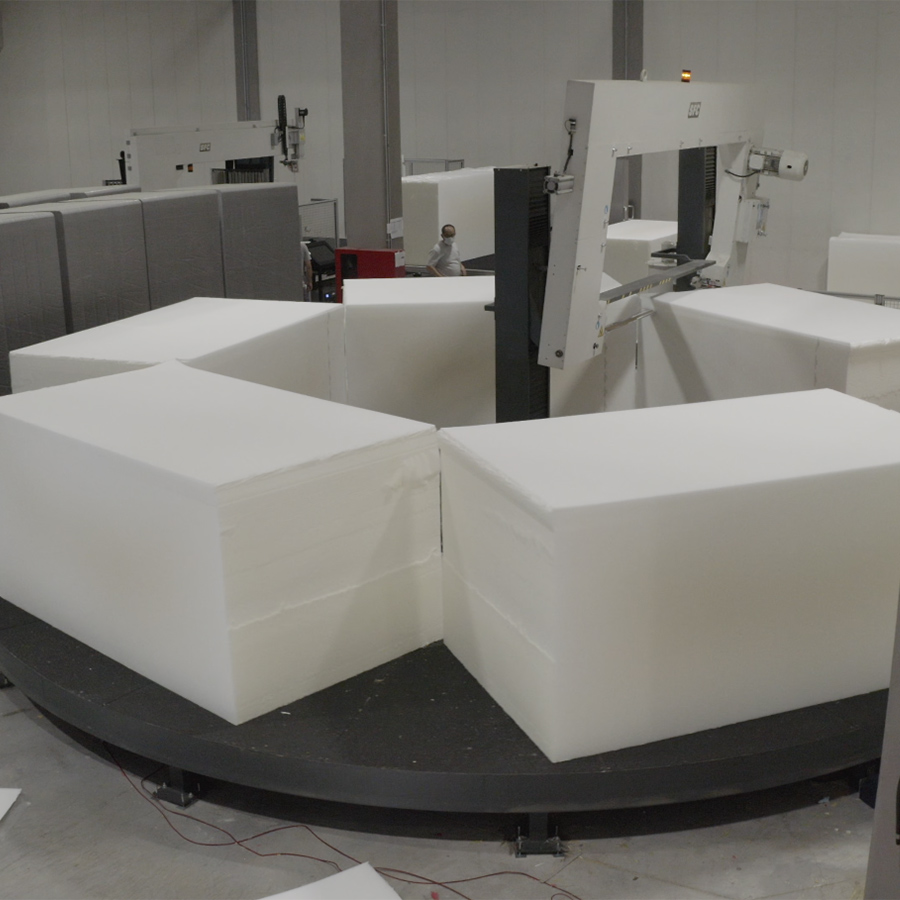

Automatically cuts the foam blocks on the circular plate at a high cutting speed, provides an advantage as more than one block can be put on the plate.

Technical Specifications

CUTTING DIMENSIONS

STANDARD

OPTIONAL

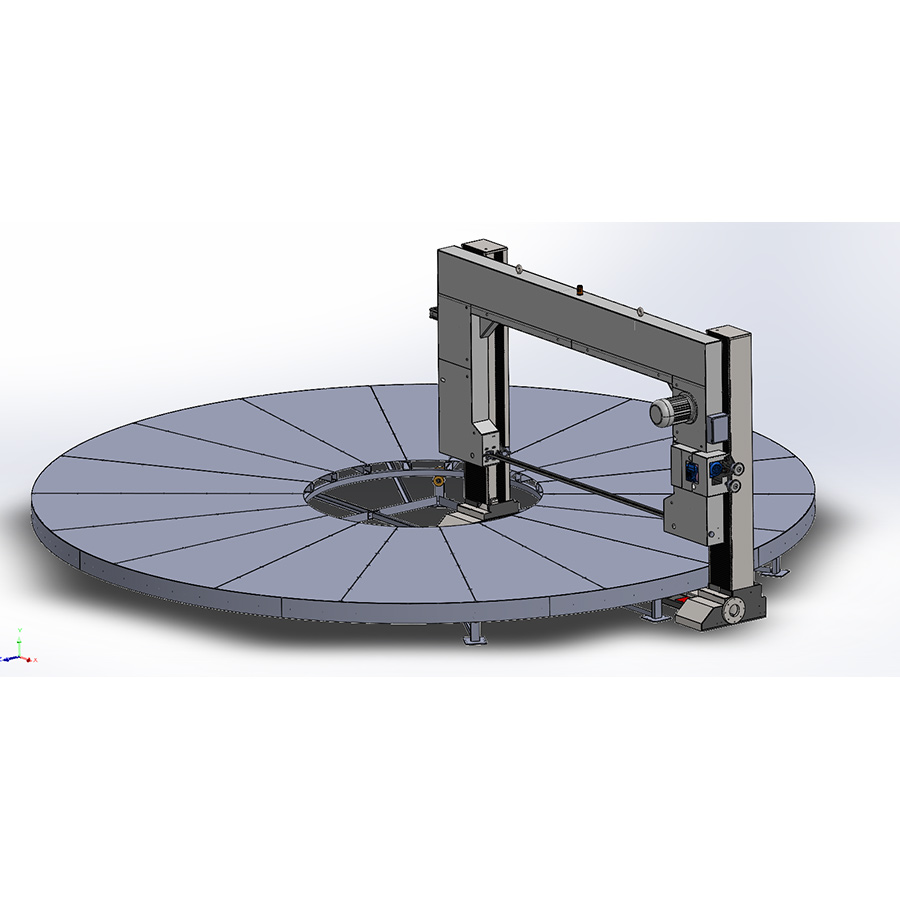

Rotary Plate Diameter

6300mm-7200mm

-

Height

1300mm

1500mm

Cutting Method

With a high suction vacuum system, the bloks are fixes and work together with the automatic angle adjustment system for precise cutting at high speeds.

Easy and Comfortable Operation Panel

Convenient control panel and interface make it easy for the operator.

Quailty Standard

The machine is manufactured according to European standards and has CE certification.

CUTTING PROPERTIES

The cutting speed can be adjusted between 0 – 100 m/min.

Cutting precision: ±0,2 mm for thicknesses between 2-10 mm, ±0,3 mm for thicknesses of 10 mm and above

Minimum cutting thickness: 2 mm

Flexible PU foam (Polyester and Polyether), Rebonded, Viscoelastic, Latex etc. materials can be cut.

STANDART PROPERTIES

Vacuum Unit

Vacuum and dust filter system that keeps the material stable during the cutting process.

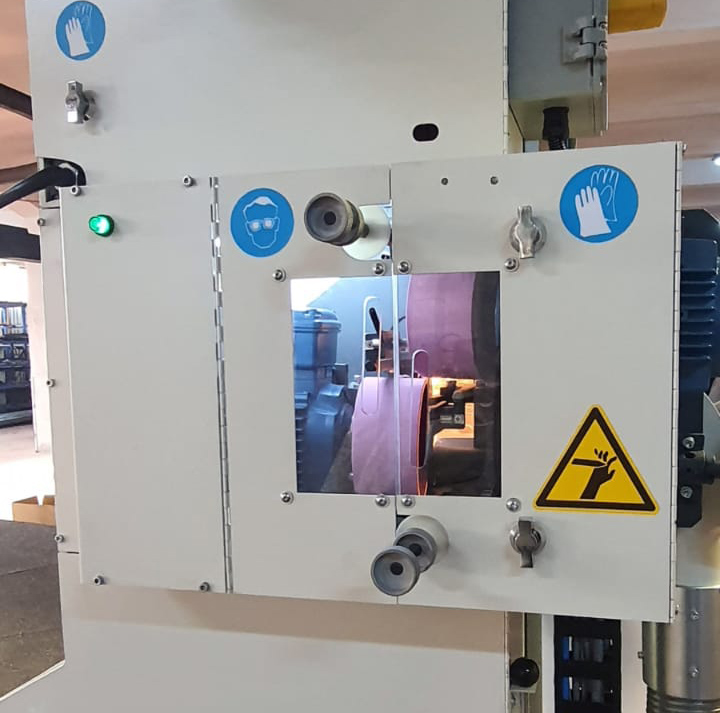

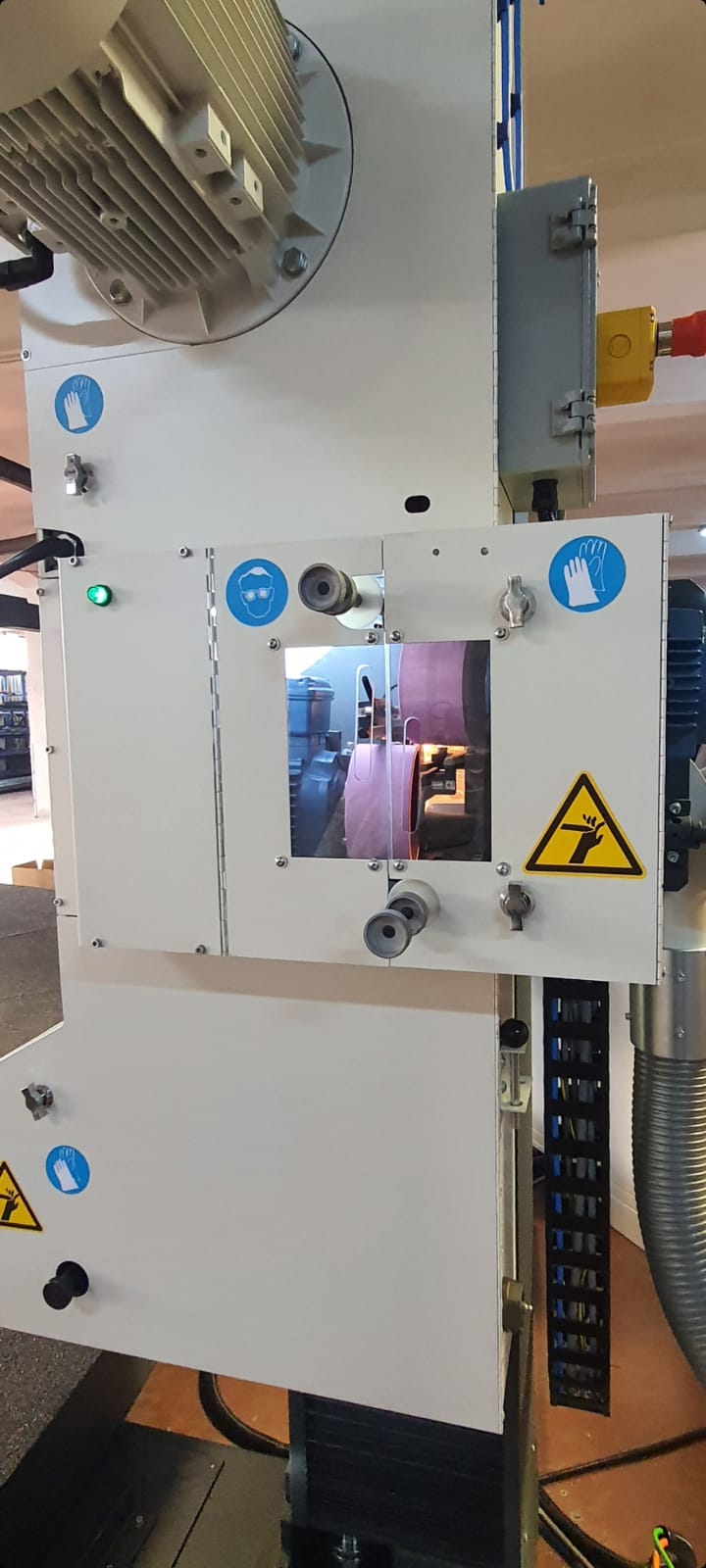

Sharpening Unıt

Automatic time defined grinding system with stable and powerful motor driven Sharpening Unıt.

Blade Guidance System

Blade guidance system, selected from high-strength steel material, with Teflon coating, for precision in the foam section of the upper densities.

Spark Extraction Unit

Cooled filter system that absorbs and removes dust and sparks generated during sharpening.

Pneumatic Blade Tensioning System

Siemens Command and Control Unit

Siemens Servo Motor Controlled Axes

Frequency Controlled Asynchronous Motors

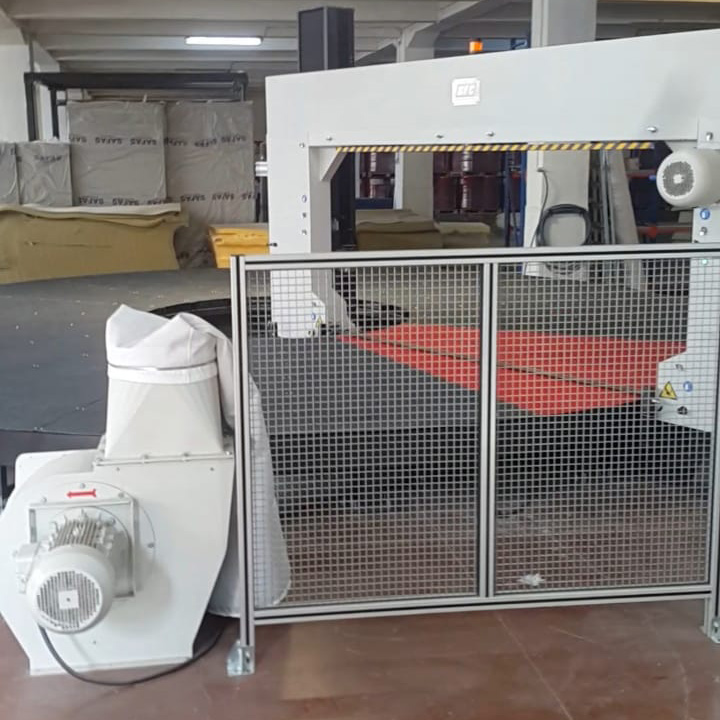

Openable Safety Gate and Security Barriers

English and German Interface Option

OPTIONAL PROPERTIES

Panel Type Air Conditioning System

It is used for cooling the electrical panel for locations with high ambient conditions.

Silicone Spray System

It minimizes the guide friction by spraying silicon spray on the blade guide surface at certain periods.
